LP103450 3.7V 1800mAh Lithium Polymer Battery

LP103450 3.7V 1800mAh Lithium Polymer Battery

LP103450 rechargeable lithium polymer battery option, 3.7V 1800mAh. Specify whether you need a cell without PCM or a protected assembly, plus your wire and connector requirements. Final specifications and documents are checked for the quoted model.

Request a Model-Specific Quote

,

Find the right battery for your device

Send your required quantity, available battery space, operating current, PCM and connector requirements. Request the approved assembly drawing and model-specific documents before ordering.

Email a Model-Specific Enquiry

Prefer a form? Request a quote online.

Compare models, capacities and reference dimensions

LP103450 1800mAh Lithium Polymer Battery

Kingberry supplies rechargeable lithium polymer batteries for electronic product projects. This page covers the 3.7V 1800mAh LP103450 option; other capacities and assembly options must be specified separately.

Model reference LP103450 / 103450
Nominal voltage 3.7V
Capacity option 1800mAh; confirm capacity test conditions in the selected cell datasheet
Energy rating 6.66Wh for the referenced configuration
Protection board Cell without PCM or assembly with PCM, subject to the selected configuration
Dimensions Request the actual cell and assembly drawing. Include clearance for PCM, insulation, lead wires and connector.
Lead wires, connector and NTC Provide wire length, connector type, polarity and sensing requirements
Current, charge limits and cycle life Confirm against the approved model-specific datasheet and test conditions

Protection and Connection Options

Tell us whether your device needs a bare cell or a battery with a protection circuit module. For a cell without PCM, describe the protection and charging system in your device. For an assembled battery, specify operating current, protection functions, connector polarity and maximum installed dimensions.

Request a Sample or Wholesale Quotation

Send your device application, available thickness × width × length, voltage, capacity, continuous and peak current, quantity and destination country. Minimum order quantity, samples, documentation and lead time are quoted for the selected configuration.

Model-Specific Documents

A supplied reference MSDS identifies model 103450 at 3.7V 1800mAh (6.66Wh): report SA2004414M 01001, issued 24 April 2020. The file applies to its named manufacturer’s sample and does not automatically cover a different supplier, capacity, PCM or assembly. Ask us to verify the current documents for the actual quoted battery before ordering.

Frequently Asked Questions

Is this the same as every other 103450 battery?

No. Confirm capacity, current capability, dimensions, charging limits, protection and terminals. Do not choose a replacement by the model code alone.

Can I request a different size or capacity?

Yes. Share your requirements and explore the lithium polymer battery range so we can discuss suitable options.

Request an LP103450 1800mAh Battery Quote

Product Image

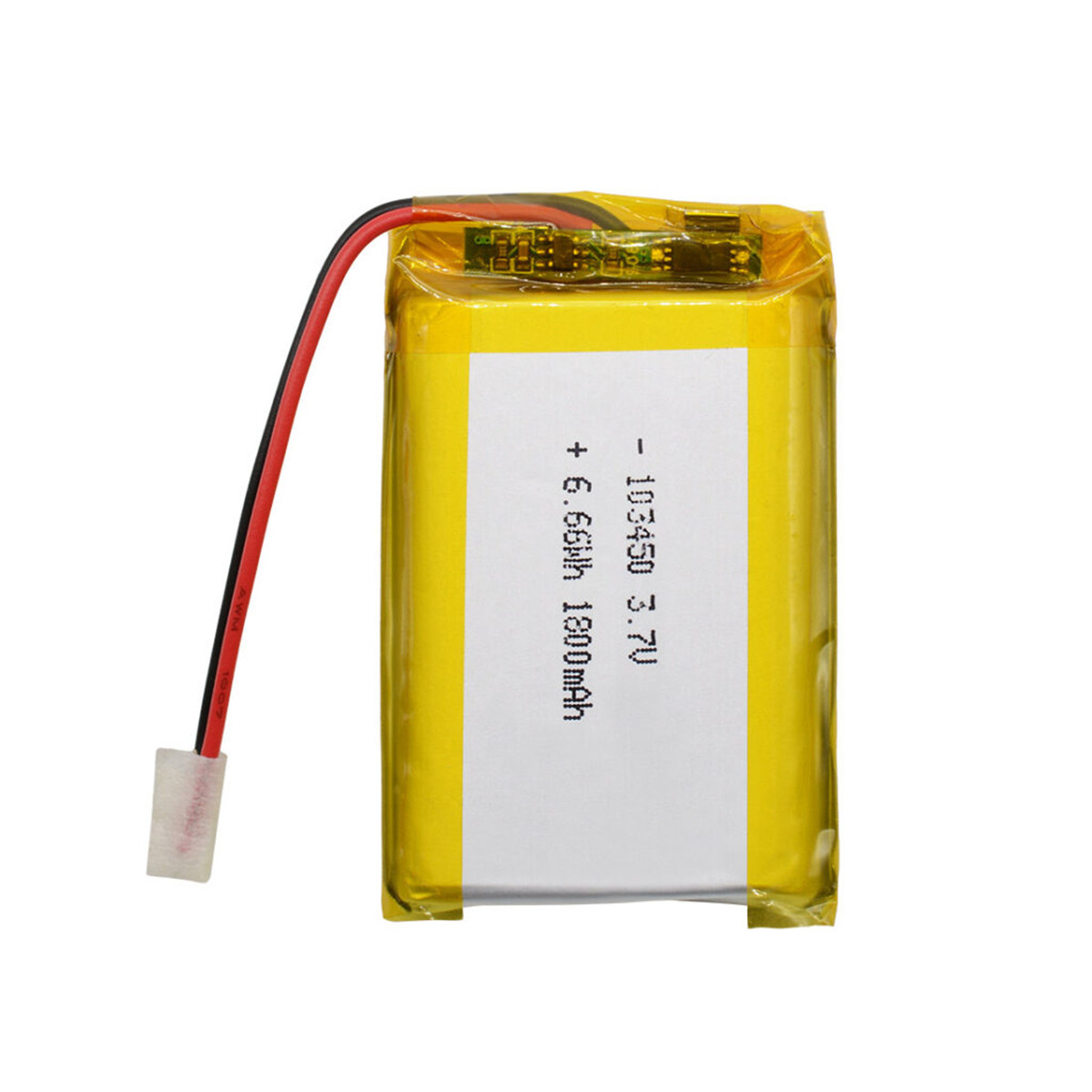

103450 3.7V 1800mAh lithium polymer battery with leads and connector
Reference product image. Confirm the connector, polarity and protection-board arrangement for the quoted assembly.

Need the other capacity option? View LP103450 2000mAh batteries.
